This article will give you detailed insight into urethane casting and its uses.
You will learn:
Urethane casting is a method where polyurethane, along with other additive resins, is injected into pliable silicone elastomer molds. Although it bears similarities to injection molding, this technique doesn't require rigid, metal molds. Due to the susceptibility of silicone molds to wear, urethane casting is particularly suitable for producing short runs and low-to-medium volume outputs. It provides a cost-efficient and faster alternative compared to using metal molds, ensuring the delivery of high-quality molded items.
Castable polyurethane, a subtype of polyurethane, can be developed into advanced, engineering-grade products. Its mechanical characteristics vary from being soft and flexible to hard and rigid, based on its formulation.
Both urethane casting and injection molding are employed in manufacturing various plastic and polymer products, yet they significantly diverge in terms of materials used, production techniques, and economic efficiency.
Injection molding is predominantly a technique for high-volume, mass production, especially with thermoplastics. It involves melting plastic pellets, then injecting them under high pressure into a mold cavity. This process is efficient and precise, ideal for mass-producing identical items like automotive parts or consumer goods.
On the other hand, urethane casting is perfect for low-to-medium volume production suited for prototypes, small batch manufacturing, or tailored parts with varied geometries. This method uses liquid polyurethane or silicone, poured into molds and cured at ambient temperature, making it an economically feasible choice for small runs that demand more design flexibility.
While injection molding is tailored for extensive production with minimal design variation, urethane casting excels at producing low-to-medium quantities and creating intricate, personalized components. Consequently, both processes are invaluable, each catering to specific production needs.
Urethane casting, also known as polyurethane casting, is a highly versatile rapid prototyping and low-volume manufacturing process widely used for producing high-quality plastic parts and components. The process relies on four essential chemical components: polyol compounds, diisocyanate compounds, chain extenders or curatives, and performance-enhancing additives. The mechanical properties and durability of the urethane castings are determined by the precise formulation of the prepolymer resin—a mixture of polyol and diisocyanate compounds—and the use of curatives. Additives are incorporated to enhance a wide range of properties, including resin curing time, machinability, physical appearance, surface finish, color, flexibility, abrasion resistance, dimensional stability, and UV protection. However, it's crucial to measure additives with accuracy; excessive amounts can compromise structural integrity and the final performance of the polyurethane parts.
One critical consideration in urethane molding is the management of the coefficient of friction (COF), which determines how much plastic materials adhere to or slide against each other. A high COF can lead to manufacturing issues and impact part performance. To optimize the release and functionality of molded parts, manufacturers often use "slip additives." These organic compounds—such as acid amides, erucamide, and oleamide—act as surface lubricants, coating the surfaces of plastic parts to reduce friction during demolding and improve part ejection. Notably, erucamide is a slow-migrating additive, providing prolonged lubrication, while oleamide acts quickly to offer immediate slip properties.

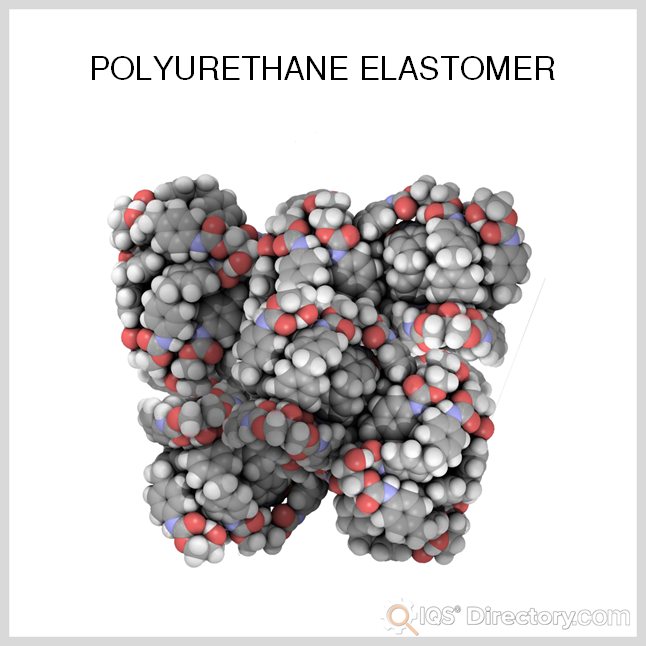

The core polyurethane reaction forms a robust and flexible polymer chain by reacting a polyol component (a molecule containing terminal alcohol groups) with a diisocyanate component (a molecule with reactive isocyanate end groups). This chemical process produces a molecule with a new alcohol group at one end and an isocyanate at the other, enabling further polymer chain growth. The alcohol end of one segment bonds to another isocyanate group, while the isocyanate end can react with chain extenders—commonly curatives containing hydroxyl or amine groups—leading to the formation of long-chained polyurethane elastomers. This reaction is highly exothermic, reinforcing the need for precise thermal management during casting to prevent defects such as bubbles or warping.
Urethane casting can be performed using several distinct processing methods to suit different user requirements and part geometries: single shot, prepolymer, and quasi-prepolymer techniques. In the single shot method, all reactants—polyol, diisocyanate, chain extender, and additives—are stored separately and precisely metered before being mixed together with a high-shear mixing head; this mixture is immediately poured or injected into the silicone, metal, or plastic mold. The prepolymer process carefully combines polyols and diisocyanates in advance, creating a partially reacted and more stable mixture before it is transferred to the mold. This approach aids in managing the heat generated by the exothermic reaction, resulting in improved control over part quality, reduced risk of bubbles, and excellent surface finish. The quasi-prepolymer process uses polyols that are partially pre-reacted with diisocyanates, reducing the mixture's viscosity and lowering processing temperatures. This method is particularly beneficial for complex shapes, large parts, or when replicating intricate details from the master pattern.
Modern urethane casting is a popular choice for rapid prototyping, low-volume production, and bridge manufacturing applications where designers, engineers, and product developers need to produce custom parts with properties similar to injection molded or thermoplastic components—without the high upfront costs or long lead times of traditional tooling. The process supports a wide range of industries, including automotive, aerospace, consumer goods, medical devices, electronics, and industrial machinery, thanks to its flexibility in producing both rigid and flexible polyurethane parts in virtually any color, texture, or finish.
For optimal results in urethane casting, experienced manufacturers utilize advanced design and simulation software to refine part geometry and mold design, select the appropriate polyurethane material system, and control processing conditions. Key considerations such as shrinkage rate, parting line placement, mold release agents, and post-curing processes will influence the performance characteristics, longevity, and end-use suitability of urethane cast products.
Urethane casting, also known as polyurethane casting, is an agile and cost-effective manufacturing process used for producing prototypes, short-run production parts, and functional components out of high-performance urethane resins. It involves creating a master pattern, fabricating a silicone mold, and pouring the liquid urethane resin to form durable, precise components. This process is highly valued for applications including rapid prototyping, bridge manufacturing, and low-volume production in automotive, consumer goods, aerospace, and medical device industries. Below are the essential steps involved in producing industry-grade urethane cast products designed to meet demanding specifications.
The first step in the polyurethane casting process is the creation of the master pattern. Common methods include advanced 3D printing techniques such as SLA (stereolithography), PolyJet, and FDM (fused deposition modeling), in addition to precision CNC machining. Regardless of the chosen method, the process begins with designing a highly accurate CAD model that faithfully represents the intended end-use part. When constructing a 3D model for urethane casting, it’s vital to account for proper moldability, ease of removal from the silicone mold, and surface finish requirements for prototype or production parts. Pay close attention to part geometry, as intricate features can impact mold release and dimensional accuracy. Here are key guidelines for producing a robust master pattern:
Minimize problematic features such as deep, narrow holes, tight internal cavities, and complex channels in the master pattern. These challenging features are best added through secondary machining or finishing operations after the urethane casting. This approach helps ensure mold integrity and higher first-pass yield for small batch production.
Unlike die casting and injection molding, urethane casting benefits from the inherent flexibility of silicone molds—draft angles are not necessary. The compliant silicone makes part demolding quick and efficient, reducing the risk of surface defects or deformations.
Incorporate optimized gates and vents into your CAD model. Gates are crucial points for injecting urethane resin and any additives, while vents allow for proper evacuation of air, reducing trapped gas and minimizing porosity. Carefully select gate sizes and positions based on part geometry and resin flow characteristics for best casting results and superior surface finishes.
If the desired part exceeds the build volume of your 3D printer or machining platform, break the model into manageable sections. Ensure accurate alignment features for reliable mold assembly.
Incorporate mold locators to prevent shifting of the mold halves during casting. Misalignment can create pronounced parting lines or dimensional inaccuracies, which are undesirable in functional rapid prototypes or pre-production evaluation units.
Selection of silicone rubber compounds for mold making is a critical factor that influences the quality and consistency of urethane casts. Two-component RTV silicone formulations (room-temperature vulcanizing) are preferred for their ease of use and versatility. These formulas consist of siloxane polymer bases mixed with a cross-linker and a catalyst to promote curing. Professional mold makers select silicone type based on factors such as mold life, tear strength, elongation, shrinkage, and chemical compatibility with specific polyurethane casting resins.
Condensation-curing silicones use organo-tin catalysts for room temperature polymerization. This system involves combining reactive and non-reactive ingredients, including silane cross-linkers and fillers. A primary consideration is that this method can cause mold shrinkage of approximately 0.5% as curing by-products leach from the mold over time, making it less ideal for high-precision or tight-tolerance polyurethane prototyping. The key benefit is its robust resistance to inhibition from model contaminants, such as sulfur found in popular sculpting clays. This makes condensation cure silicones well-suited for less controlled environments or when using less conventional master pattern materials.
Addition cure silicone elastomers use platinum-based catalysts, resulting in highly accurate, odorless, and dimensionally stable molds with excellent tear resistance and a long working shelf life. With virtually no shrinkage, these molds deliver precise replicas and are ideal for complex geometries, undercuts, or thin-walled parts commonly required in prototyping and short-run manufacturing processes. However, addition-cure silicones are sensitive to certain chemical inhibitors—such as sulfur, phosphorus, organo-tin, natural rubber, and some epoxy stabilizers—necessitating high cleanliness in the pattern and work environment.
Alternative curing methods include RTV-1 (one-component, moisture-cure) and HTV (high-temperature vulcanizing, peroxide-cure) silicone systems. RTV-1 is well-suited for simple, non-production casting projects and when moisture sensitivity is important, releasing by-products that contribute to distinct odors. HTV, while offering heat resistance, introduces mold shrinkage due to silicone’s high thermal expansion and is generally reserved for specialized, high-temperature applications rather than general polyurethane or resin casting.
For best results, mix elastomer components in an oversized container to accommodate expansion during vacuum degassing, a step highly recommended in professional urethane molding to prevent air entrapment and ensure clear, void-free casts. While degassing is technically optional for small or non-critical parts, it is standard practice for precision applications where surface quality and structural integrity are paramount. During this step, bubbles rise and burst, leaving the silicone at its original volume and thoroughly de-aerated.
The next phase in the urethane molding process is mold creation. A mold box or containment frame secures the master pattern and retains the silicone during casting. Mold construction methods vary based on part complexity, production requirements, and desired mold longevity. The three most common silicone mold types are book mold (single-stage), two-part mold (with distinct parting planes), and skin mold:
Before pouring the urethane casting resin, some manufacturers apply a specialized mold release agent to further reduce sticking, extend mold life, and streamline demolding. While the inherent non-stick nature of silicone generally negates the need for mold release, it provides additional security for high-volume runs or challenging part geometries.
Open-face silicone molds, widely used by hobbyists and prototype service providers, are distinguished by their ease of creation and suitability for low-volume production, rapid prototyping, and custom part manufacturing. These molds are formed from two simple halves and require less technical setup, making them efficient for one-off or trial urethane casting jobs.
For successful DIY or small-batch urethane casting, begin by using a high-quality pattern fabricated through 3D printing or CNC machining. Prior to mold creation, thoroughly inspect and finish the master for flaws. Sanding and primer-painting, followed by several coats, offer optimal surface finishes that transfer directly to your urethane parts.
Selection of silicone should be based on the anticipated number of castings, required surface finish, and mold hardness (durometer). Pour the silicone slowly from the lowest point of the mold box to fill intricate details and eliminate air pockets. Professional casting operations use vacuum chambers to degas silicone, minimizing bubbles for higher part aesthetics and mechanical consistency.
Allow the silicone to cure fully (curing agent may be tin- or platinum-based), with the timeline dependent on both catalyst type and pattern complexity—typically six or more hours for production-ready molds.
After curing, demold carefully. Any excess silicone, known as flash, is easily trimmed away with hand tools—simpler and safer than in high-pressure injection molding, and ideal for post-processing low-volume urethane prototypes.
With the mold ready, the final step is to mix and pour the polyurethane resin. Polyurethane casting resins are available in rigid, flexible, and elastomeric grades, allowing manufacturers to match shore hardness, color, and performance properties to end-use requirements. When choosing a resin, consider material properties such as durability, tensile strength, elongation, temperature resistance, and chemical compatibility for the intended use—whether for a functional prototype, appearance model, or end-use component.
The mixed urethane resin and curative are thoroughly blended and vacuum degassed to eliminate micro-bubbles. Filling the mold can be achieved with gravity pouring for straightforward parts or pressure casting systems for more complex or thin-walled sections, ensuring bubble-free, high-resolution results. Controlled pouring and equal resin distribution are essential to avoid flow marks and surface imperfections.
After the urethane resin cures (time varies by resin system, mold temperature, and part size), gently open the silicone mold to release a dimensionally accurate casted part ready for post processing.
Once demolded, urethane cast parts may undergo additional finishing to achieve precise requirements. Processes include trimming gates, vents, and any flash using hand tools or precision machining. Where internal holes or complex features were omitted from the pattern for moldability reasons, they can now be added through drilling or CNC milling. Take care—urethane materials may soften or melt under aggressive machining due to their thermal properties, so use sharp tools, slow speeds, and coolant as necessary to maintain part integrity. Surface finishing, painting, or functional testing can be performed as needed to ensure cast parts meet final product specifications for appearance, fit, and function.
Overall, the urethane casting process bridges the gap between single-use rapid prototyping and mass production injection molding, offering engineers and designers a fast, affordable way to produce high-quality prototypes, custom parts, and end-use products that closely emulate final injection molded components at a fraction of the tooling cost and time.
There are numerous machines available for urethane casting in the United States and Canada. These machines are crucial in today's industry as they facilitate the efficient production of custom polyurethane parts used across various sectors, including automotive, medical devices, and consumer goods. Below are several leading machines in this category.
The Baulé MK Series machines are renowned for their precision and versatility in handling a wide range of polyurethane materials, from flexible to rigid. Key features include automated mixing, precise temperature control, and user-friendly interfaces, making them a popular choice across various industries.
The Poly Purge series is highly regarded for its compact design, ease of use, and efficient material purging capabilities. These machines are well-suited for smaller-scale operations and prototyping due to their relatively lower capacity and cost.
Smooth-On is a leading manufacturer of urethane casting systems, offering a range of machines tailored to specific applications. Their systems often feature user-friendly controls, compatibility with multiple materials, and integrated vacuum degassing systems for high-quality casting results.
The Graco Reactor E-Series is renowned for its durability and efficient performance. It features precise mixing, temperature control, and ratio monitoring, making it ideal for large-scale industrial urethane casting applications.
The Moldman� 8000 series offers automated solutions for precise and consistent urethane casting. These machines are equipped with advanced software controls, robotic handling, and closed-loop systems to enhance process control.
Note that the availability and popularity of specific models may have changed since this posting. For the most current information, it's advisable to contact manufacturers or suppliers of urethane casting machines in the United States and Canada.
Urethane castings offer distinct advantages over metals and other plastics due to their unique properties. Below are some key characteristics that make polyurethane resins exceptional.
Abrasion can be categorized into two types: sliding and impingement abrasion. Sliding abrasion occurs when a softer material rubs against a harder one, with or without contaminants present between the surfaces. Impingement abrasion, on the other hand, involves particles striking the surface, leading to erosion. Due to their resistance to both types of abrasion, cast urethanes are particularly well-suited for applications such as wheels and rollers.
Cast urethanes with a low coefficient of friction and high tear strength provide excellent resistance to sliding abrasion. For impingement abrasion, cast urethanes with high resilience are preferred. Resilient polyurethanes can easily deform elastically, which helps in distributing the impact forces from particles across the surface.
Abrasion resistance in urethane castings is largely influenced by the composition of the resin. Among the various polyol compounds used in polyurethane production, polyesters are known for their superior tear and abrasion resistance.
Polyurethane exhibits good impact resistance. It can absorb and dissipate energy when subjected to sudden or high-force impacts. This property is valuable in applications where protection against shocks and impacts is necessary, such as in sports equipment and automotive bumpers automotive bumpers.
Hardness refers to a material's resistance to localized surface deformation, typically assessed by measuring the depth of an indentation made by a standard indenter, ball, or presser foot. Materials are then ranked based on their relative hardness. For elastomers, hardness is often measured using the Shore hardness scale, which is determined with a durometer. The Shore hardness scale consists of 12 different scales, each with its own indenter configuration, profile, and force. The most commonly used scales for urethane castings are Shore A and Shore D. The Shore A scale is used for measuring the hardness of soft and semi-rigid polyurethanes, while the Shore D scale is used for hard rubbers and rigid polyurethanes. It's important to note that higher hardness does not necessarily indicate greater rigidity or strength.
Polyurethane generally offers excellent tensile strength, enabling it to endure stretching forces without breaking. The specific tensile strength can vary based on the formulation, but it is usually comparable to or exceeds that of many other plastics. Urethane casts can be engineered to achieve tensile strengths of up to 14,000 psi by incorporating composite materials such as fiberglass and carbon fibers.
Flexural strength is a measure of a material's ability to resist bending without undergoing permanent deformation or breakage. Polyurethane generally exhibits strong flexural strength, particularly in its rigid or semi-rigid forms. This property makes it suitable for applications involving structural components and load-bearing parts. Typically, polyurethane castings have a flexural strength of around 17,000 psi, with composite casts reaching up to 39,000 psi.
As previously discussed, urethane resins consist of four key components, with three of them significantly influencing the final mechanical properties of the product. The various formulations of these components allow for customization to meet specific application needs. Below is an overview of the urethane resin components, their types, and the properties they impart to the final product.
Polyols are low molecular weight compounds containing multiple hydroxyl (-OH) groups. They react with isocyanates to form polyurethane, with the isocyanates having two reactive ends that link with the polyols to create a network structure. This network gives polyurethane its distinctive properties. In urethane casting, polyols are primarily categorized into two types: polyether and polyester.
Polyethers are produced through the reaction of organic oxides with glycol. They are known for their resilience, high impact resistance, low heat build-up in dynamic applications, hydrolysis resistance, and good performance at low temperatures. Common polyether types used in polyurethane production include PTMEG and PPG. PTMEG offers superior quality but at a higher cost compared to PPG.

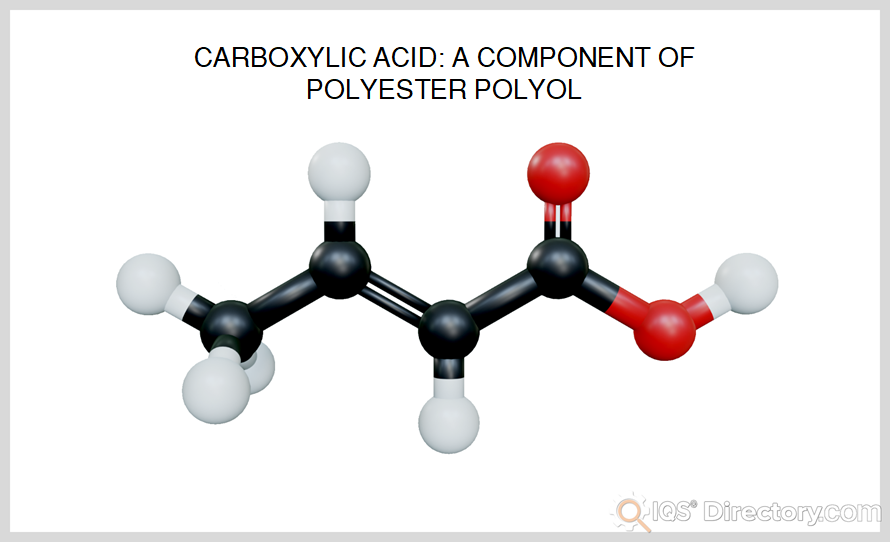

Polyesters are synthesized via the polycondensation reaction of diacids with glycol. Compared to polyethers, polyesters provide excellent abrasion resistance, heat aging resistance, oil and solvent resistance, as well as superior shock absorption and tear resistance.
Among the specialty polyols, polycarbonate and polycaprolactone are prominent. Although sometimes classified as polyesters, polycarbonates are valued for their engineering properties due to their strength and toughness. Polycaprolactone, on the other hand, enhances the urethane cast's resistance to water, oil, solvents, and chlorine.
Diisocyanates are chemical compounds featuring two isocyanate (-NCO) functional groups. They play a crucial role in producing polyurethane materials, including foams, coatings, and adhesives. The two primary types of diisocyanates are aliphatic diisocyanates and aromatic diisocyanates.
Aliphatic diisocyanates are known for their non-yellowing properties and lower reactivity. They are ideal for applications requiring color stability and chemical resistance, such as in polyurethane coatings, films, and castings. Common aliphatic diisocyanates include hexamethylene diisocyanate (HDI), hexamethylene diisocyanate (HMDI), and isophorone diisocyanate (IPDI).
Aromatic diisocyanates contain benzene rings in their chemical structure and are categorized into Naphthalenic Diisocyanates (NDI), Toluene Diisocyanate (TDI), and Methylenediphenyl Diisocyanate (MDI).
NDIs are more commonly used in Europe compared to the TDI and MDI-dominated American market. They offer excellent performance and durability for dynamic applications. However, NDIs have a high melting point, making them challenging to process, and they exhibit lower storage stability due to high reactivity. As a result, they are typically manufactured using specialized equipment at custom molders.

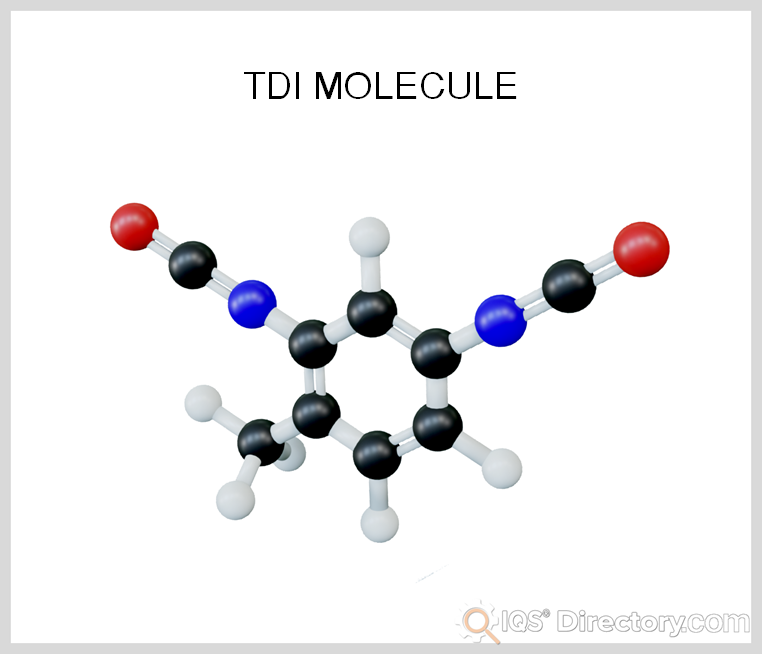

Aromatic diisocyanates, particularly Toluene Diisocyanate (TDI), are commonly used in applications requiring high hardness, such as guide rollers, unlike Methylenediphenyl Diisocyanate (MDI). In industrial settings, TDIs are typically used in an 80/20 blend of the 2,4 and 2,6 isomers. Achieving different proportions beyond this 80/20 blend necessitates an additional processing step.

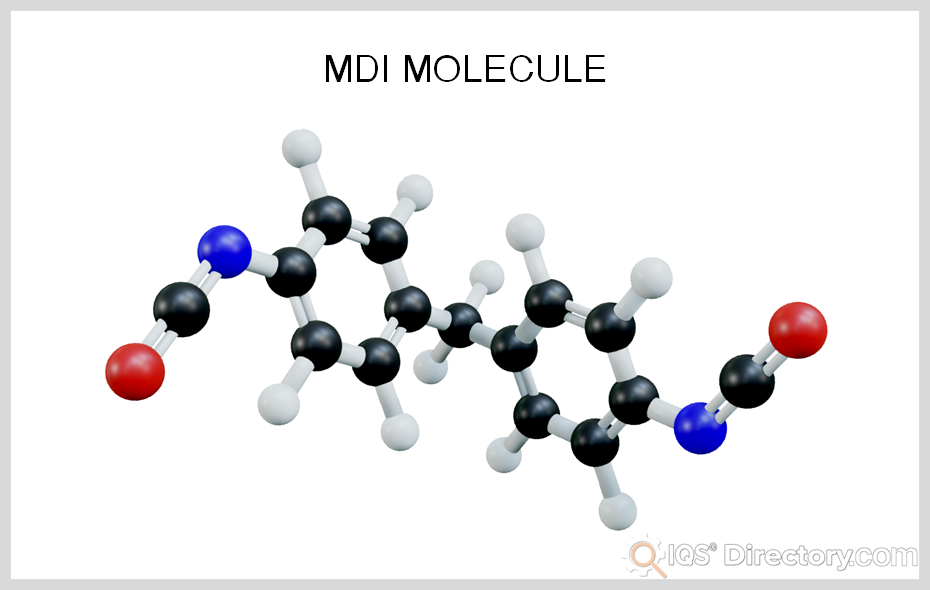

Methylenediphenyl Diisocyanates (MDIs) are renowned for enhancing the resilience and impact strength of urethane casts. Consequently, MDIs, when paired with either polyethers or polyesters, are frequently used in dynamic and high-impact applications such as wheels, construction panels, and automotive bumpers. The most commonly used isomer for casting is the purified 4,4'-MDI.
Curatives are added to the polyol and diisocyanate prepolymer to transform the mixture into a solid or semi-solid elastomer. There are two primary types of curatives: hydroxyls and amines.

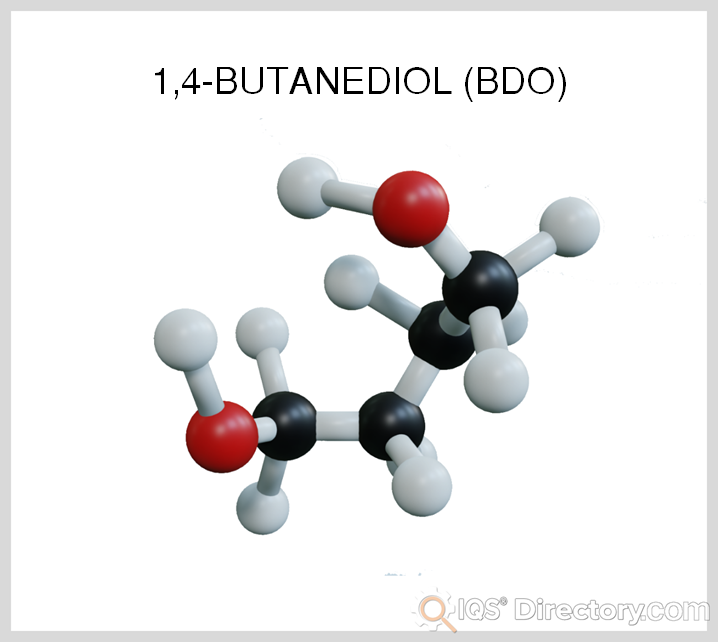

Hydroxyl curatives have hydroxyl groups (OH) at their molecular terminals, which facilitate the linking of prepolymers. A commonly used hydroxyl curative is 1,4-butanediol (BDO), often employed in MDI prepolymer systems at room temperature.
In addition to hydroxyl groups, amine groups (NH2) can also bond to the terminals of the prepolymer. A widely used amine curative is 4,4-methylenebis(2-chloroaniline), commonly known as MOCA, which serves as the base curative for TDI prepolymer systems. However, MOCA has been identified as a carcinogen by OSHA. As a result, alternative amine chain extenders, such as 4,4-methylenebis(3-chloro-2,6-diethylaniline) (MCDEA), are now used in place of MOCA.
Below are the main advantages of using urethane casting compared to die casting and injection molding.
Urethane casting benefits from using soft molds like silicone, which are significantly cheaper and easier to produce than metal molds. This makes it an ideal choice for casting prototypes and making modifications at a lower cost. Additionally, urethane casting does not require expensive equipment such as injection pumps, heaters, or kneading machines, further reducing overall investment costs.
Urethane molds can be created within three days as compared to hard molds that may require a week or two. Master patterns and silicone molds are easy to fabricate, making them suitable for pre-production runs that are usually on trial and error. Product design becomes much faster before transferring to hard tooling.
Urethane casting is favored for DIY and small-scale projects due to its straightforward processing requirements. Typically, only a few basic tools are needed: containers, a weighing scale, an air compressor, a mixer, and a spatula. Silicone molds can be made under atmospheric pressure and temperature conditions, while urethane resin usually requires heating to reduce viscosity, accelerate curing, or melt solid components.
Polyurethane systems offer versatility in physical properties, thanks to varying types and proportions of polyols, diisocyanates, and curatives. This flexibility allows for the formulation of materials with a wide range of characteristics. Urethanes can be tailored for high-performance, rigid applications like wheels and rollers, or for softer, shock-absorbing uses such as impact-absorbing pads and cushions. Various formulations are available, each designed for specific applications.
Due to their diverse range of properties, cast urethanes are utilized across various industries. Their versatility and low initial manufacturing costs make them a popular choice for many applications. Here are some common uses of urethane casting:
Urethane casting is frequently employed in product development to create prototypes for design validation and testing. This method provides a cost-effective and rapid way to iterate and refine designs before investing in expensive tooling for mass production.

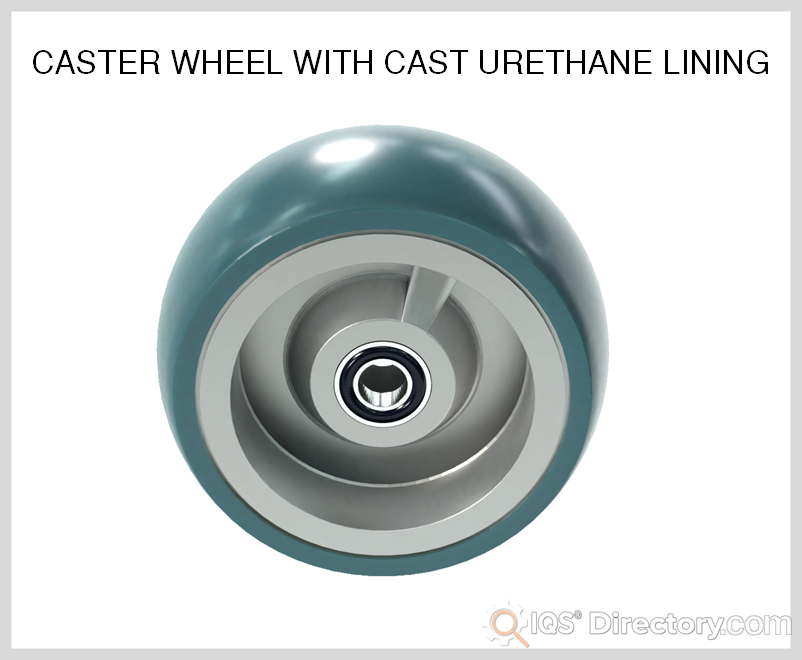

Urethane wheels and rollers are known for their high load-bearing capacity, excellent wear resistance, and superior traction. They are also capable of absorbing shock and reducing noise levels, making them ideal for various industrial applications. Urethane's flexibility in durometer selection allows for tailored hardness, providing a perfect balance between grip and durability. Additionally, these cast components exhibit excellent resistance to chemicals and abrasion, ensuring longevity even in harsh environments.
Urethane castings can be engineered to be shock and vibration resistant, making them ideal for automotive applications. Additionally, their ability to withstand high temperatures allows them to serve as a replacement for steel in certain applications.
High vibration from rotating equipment causes rigid materials to crack. Urethane castings can be made to absorb vibrations, as seen from shock absorbers and dampers.
Urethane formulations that are FDA compliant are available, making urethane casting a suitable method for producing medical devices. This method is particularly advantageous for low-volume production of specialized or uniquely designed medical products.
Due to their versatile properties, urethane castings are used in a variety of consumer products. Examples include shoe soles, sports equipment, electronics casings, and more.
